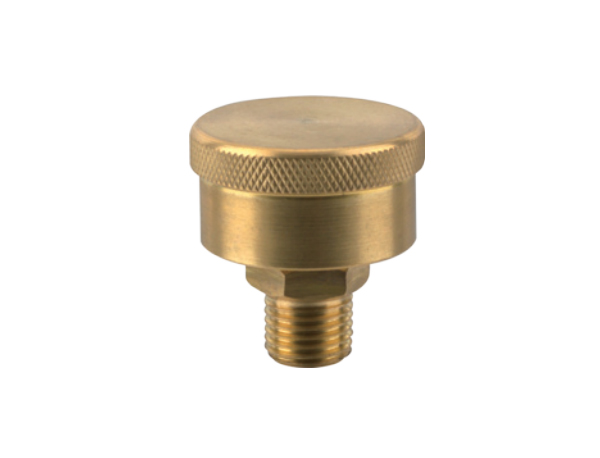

Product Name: Oil Cups Model Number: HY8317.3 Brand Name: Huayang Executive Standard: GB1154-89 Material: Brass Surfaced Process: Place of Origin: Zhejiang, China (Mainland)
Product specification

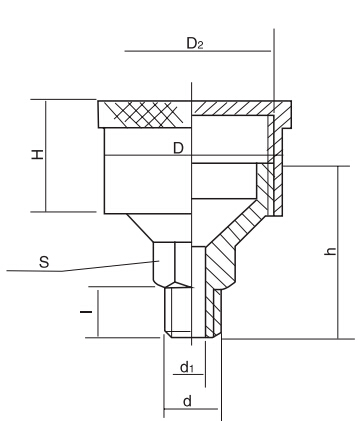

Drawing
Parameter Size
| Item No. | Mini cap | Main dimensions | |||||||
| Brass | d | I | H | h | d? | D | d? | S | |
| HY8317.3\1.5cm 3 | 1.5cm 3 | M10x1 | 8 | 14 | 22 | 3 | 16 | M14x12.5 | 12 |
| HY8317.3\3cm 3 | 3cm 3 | 15 | 23 | 20 | M18x12.5 | 14 | |||
| HY8317.3\6cm 3 | 6cm 3 | 17 | 26 | 26 | M24x12.5 | 14 | |||
| HY8317.3\12cm 3 | 12cm 3 | M14x1.5 | 10 | 20 | 30 | 4 | 32 | M30x12.5 | 17 |
| HY8317.3\25cm 3 | 25cm 3 | 24 | 34 | 41 | M39x12.5 | 19 | |||
| HY8317.3\50cm 3 | 50cm 3 | M16x1.5 | 12 | 30 | 44 | 5 | 50 | M48x12.5 | 22 |
